Maruti Swift Diesel All Engine Sensor Information and Location

 MARUTI SWIFT DIESEL ENGINE SENSOR

( Maruti Swift Diesel Engine Compartment Fitted Sensor And  Control Unit  )

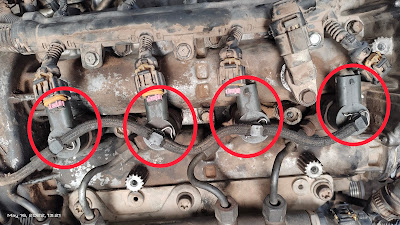

1) FUEL INJECTOR :-

Fuel Injector Fitted Cylinder Head

 2) CAMSHAFT SENSOR :-

Camshaft Sensor fitted Tappet cover

3) DIESEL REGULATOR VALVE :-

Diesel Regulator valve fitted Common rail

4) FUEL PRESSURE SENSOR :-

Fuel pressure sensor Fitted common rail

5) GLOW PLUG :-

Glow plug Fitted cylinder head

6) ENGINE OIL PRESSURE SENSOR :-

Engine oil Pressure Sensor fitted cylinder head

7) EGR VALVE :-

Exhaust Gas Recirculation Fitted Cylinder head

8) CRANKSHAFT SENSOR :-

Crankshaft Sensor fitted cylinder block and flywheel teeth Rotation Count



9) REVERSE LIGHT SENSOR  :-

Reverse sensor fitted gearbox , Reverse gear shift then working and reverse light on and off

10) ENGINE CONTROL UNIT :-

Ecu fitted Engine Compartment Wiper Panel Under Body

11) BOOST PRESSURE SENSOR :-

Boost pressure sensor fitted intake manifold

12) WATER LEVEL SENSOR :-

Water level sensor fitted diesel filter , Water mix in diesel this sensor indication

13) FUEL TEMPERATURE SENSOR :-

Fuel Temperature sensor fitted diesel filter body

14) COOLANT TEMPERATURE SENSOR :-

Coolant temperature sensor Fitted Thermostat  Body

15) VEHICLE SPEED SENSOR :-

Vehicle speed sensor fitted gearbox

16)  AIR MASS FLOW SENSOR :-

air mass flow sensor fitted air filter body , Air flow and Air temperature Count
