MARUTI CIAZ 2014-2019 FUSEBOX
1) CABIN COMPARTMENT FUSEBOX :-
Location :-

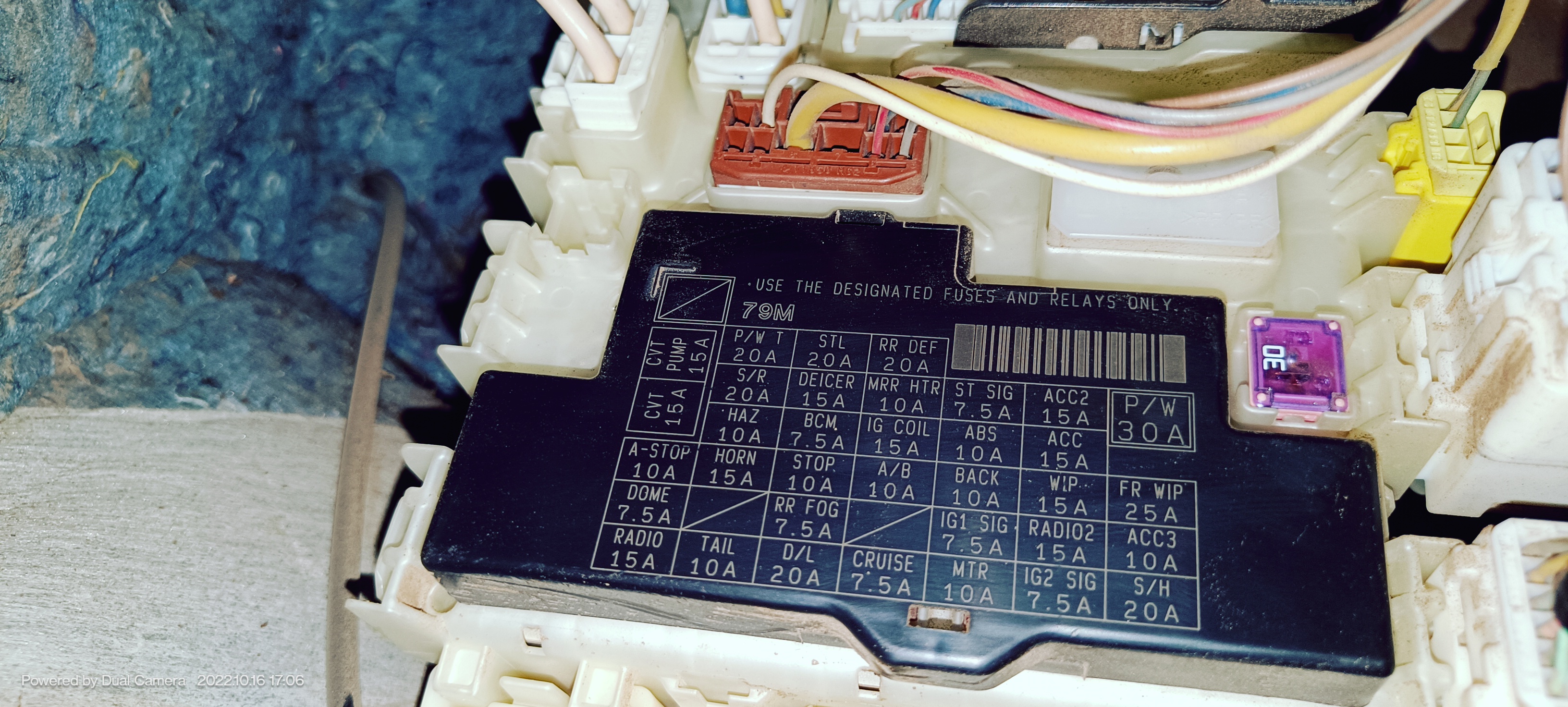

The fuse box is located under the steering wheel and Near Accelerator Pedal . This Fuse box has a black color cover on which all the Fuse information is on the cover. If you don't know about that Fuse, below is the complete information of all Fuse.
Fusebox :-
- CVT PUMP 15A ( Continuously variable transmission Motor Pump)
- CVT 15A (Continuously variable transmission )
- A-STOP 10A ( Automatic Start and Stop )
- DOME 7.5A ( Roof Top Lights )
- RADIO 15A (Music System )
- P/W T 20A ( Power Window Timer Function)
- S/R 20A ( Sun Roof )
- HAZ 10A ( Hazard Four Indicator )
- HORN 15A ( Horn )
- TAIL 10A ( Tail Light / Parking Lamp)
- STL 20A ( Steering Lock)
- DEICER 15A ( DEICER )
- BCM 7.5A ( Body Control Module )
- STOP 10A ( Stop Light/Brake Light)
- RR FOG 7.5A (Rear Fog lamp)
- D/L 20A ( Door lock System)
- RR DEF 20A ( Rear Defog )
- MRR HTR 10A ( Door Mirror , Heater)
- IG COIL 15A ( Ignition Coil)
- A/B 10A (Air Bag)
- CRUISE 7.5A ( Cruise Control System)
- ST SIG 7.5A ( Starter Signal )
- ABS 10A ( Anti-lock Brake Sytem)
- BACK 10A ( Reverse Light)
- IG1 SIG 7.5A ( Ignition signal )
- MTR 10A ( meter )
- ACC2 15A ( Accessories. Cigarette Lighter, etc)
- ACC 15A ( Accessories. Cigarette Lighter, etc)
- W/P 15A ( Wiper Motor Water Spray )
- RADIO 2 15A ( Music System)
- IG2 SIG 7.5A ( Ignition Signal 2)
- P/W 30A ( Power Window Main Fuse)
- FR W/P ( Front Wiper Motor)
- ACC 3 ( Accesories )
- S/H 20A ( Seat Heater )
2) ENGINE COMPARTMENT FUSEBOX :-
Location :-

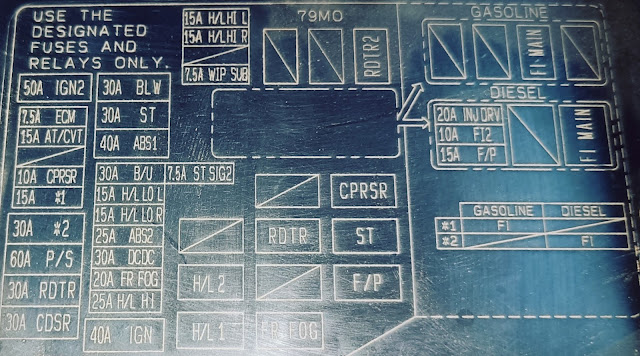

The fuse box is located under Bonet Hood and Engine Compartment Area Near Battery . This Fuse box has a black color cover on which all the Fuse information is on the cover. If you don't know about that Fuse, below is the complete information of all Fuse.
Fusebox :-
- 50A IGN2 ( Ignition 2)
- 7.5A ECM ( Engine Control Module)
- 15A AT/CVT ( Automatic Transmission / Continuously variable transmission)
- 10A CPRSR ( Ac Compressor )
- 15A *1 ( Fuel Injection Petrol Car)
- 30A *2 ( Fuel Injection Diesel Car)
- 60A P/S (Power Steering)
- 30A RDTR ( Radiator Fan )
- 30A CDSR ( Condenser Fan )
- 30A BLW ( Blower Fan )
- 30A ST ( Starter )
- 40A ABS1 ( Anti-lock Brake System)
- 30A B/U (Backup)
- 15A H/L LO L ( Headlight low beam Left side)
- 15A H/L LO R ( Headlight low Beam Right side)
- 25A ABS2 ( Anti-lock Brake System)
- 30A DCDC (DCDC)
- 20A FR FOG ( Front Fog Light )
- 25A H/L HI ( Headlight High Beam )
- 40A IGN ( Ignition Main)
- 15A H/L HI L ( Headlight High Beam Left Side)
- 15A H/L HI R ( Headlight High Beam Right Side)
- 7.5A W/P SUB ( Wiper )
- 7.5A ST SIG2 ( Starter Signal )
- 20A INJDRV ( Injector Diesel Regulator Valve *Only Diesel Car)
- 10A FI 2 ( Fuel Injection 2 * Only Diesel Car)
- 15A F/P ( Fuel Pump *Only Diesel Car)
- H/L 2 ( Headlight Relay )
- H/L 1 ( Headlight Relay )
- FI-MAIN ( Fuel Injection Main * only Petrol car)
- RDTR ( Radiator Fan Relay)
- FR FOG ( Front Fog Lamp Relay)
- RDTR 2 ( Radiator Fan Relay )
- FI-MAIN ( Fuel Injection * Only Diesel Car)
- CPRSR ( Ac Compressor Relay)
- ST ( Starter Relay)
- F/P ( Fuel Pump Relay )
