KIA SELTOS FUSEBOX
1) Cabin Compartment Fusebox :-
Location :-
This fuse box is located near the steering wheel. the fuse information is given on it. If you don't know the meaning of fuse then below all the information about fuse is given in detail.
Fusebox Diagram :-
- 30A DRV ( Driver Seat Manual Switch)
- 25A AMP ( Amplifer)
- 25A P/WDW RH ( Power Window RH)
- 25A P/WDW LH ( Power Window LH)
- 10A WIPER RR ( Rear Wiper Motor )
- 10A SEAT VENT FRT ( Front Air Ventilation Seat )
- 20A SUNROOF
- 10A TAILGATE OPEN ( Rear Dicky Open Switch)
- 7.5A MODULE 1 ( Hazard Switch/ Link Connector)
- 10A BRAKE SWITCH ( Stop Lamp ,IBU)
- 20A DOOR LOCK ( Center Lock System)
- 15A IBU 1 ( Integrated Body Control Unit)
- 7.5A START ( Start System)
- 10A WIPER FRT 1 ( Front Wiper Motor)
- 10A MEMORY 2 ( ICM , Mirror folding)
- 15A MULTI MEDIA ( Audio , Music System)
- 25A IG 1 ( Ignition 1)
- 10A ABS ( Anti-lock Brake System )
- 10A REAR HEATED ( Ac Control system)
- 7.5A IBU 2 ( Integrated Body Control Unit )
- 10A MODULE 5 ( Elecro chorme mirror,body functions)
- 7.5A MODULE 3 (Stop Lamp Switch, Auto Transmission Shift Lever)

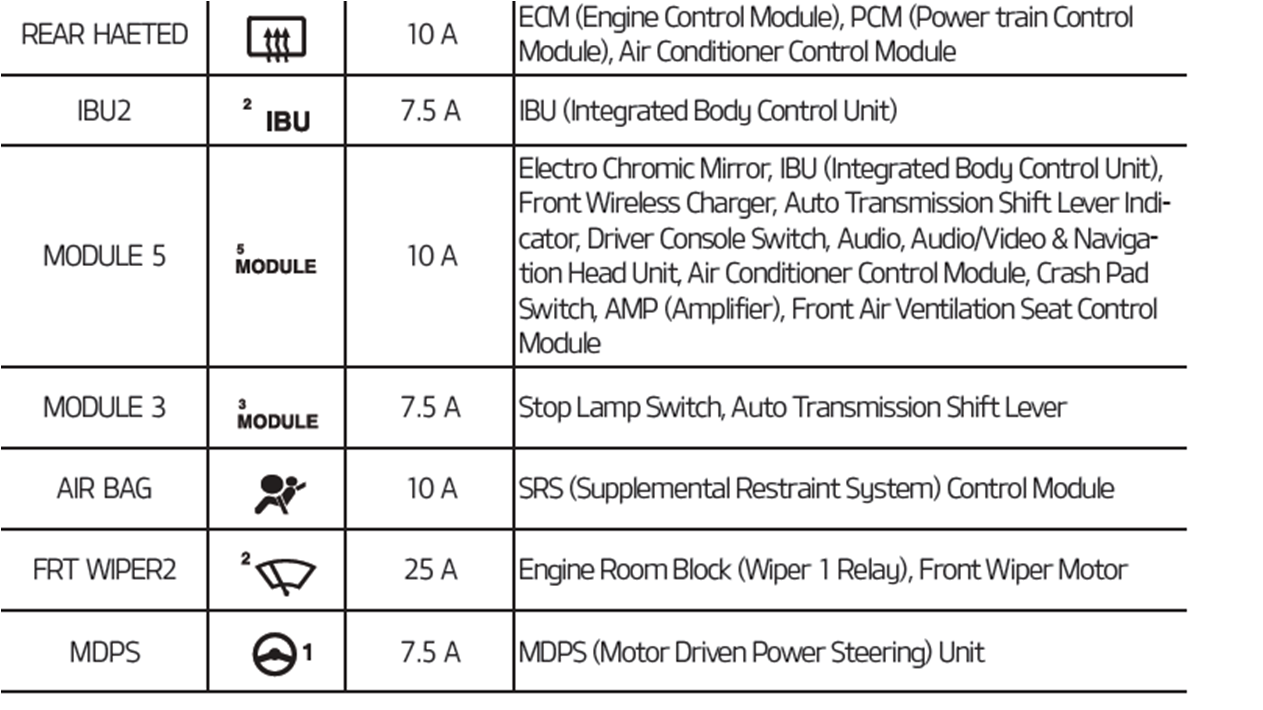

- 10A AIRBAGS
- 25A FRT WIPERS 2 ( Front Wiper)
- 7.5A MDPS 1 ( Motor Driver Power Steering Unit)
- 7.5A A/BAG IND
- 7.5A CLUSTER ( Meter , Head Up Display)
- 7.5A A/C 1 ( Blower Relay, Ac Fuse)
- 20A POWER OUTLET 2 (Front Power Outlet)
- 10A MODULE 2 ( USB Charger . IBU)
- 10A A/C 2 ( Ac Fuse)
- 7.5A MODULE 7 ( Head Lamp RH/LH )
- 15A WASHER ( Wiper Wisher . Multi Function Switch)
- 15A POWER OUTLET 1 ( Front Power Outlet)
2) Engine Compartment Fusebox :-
Location :-

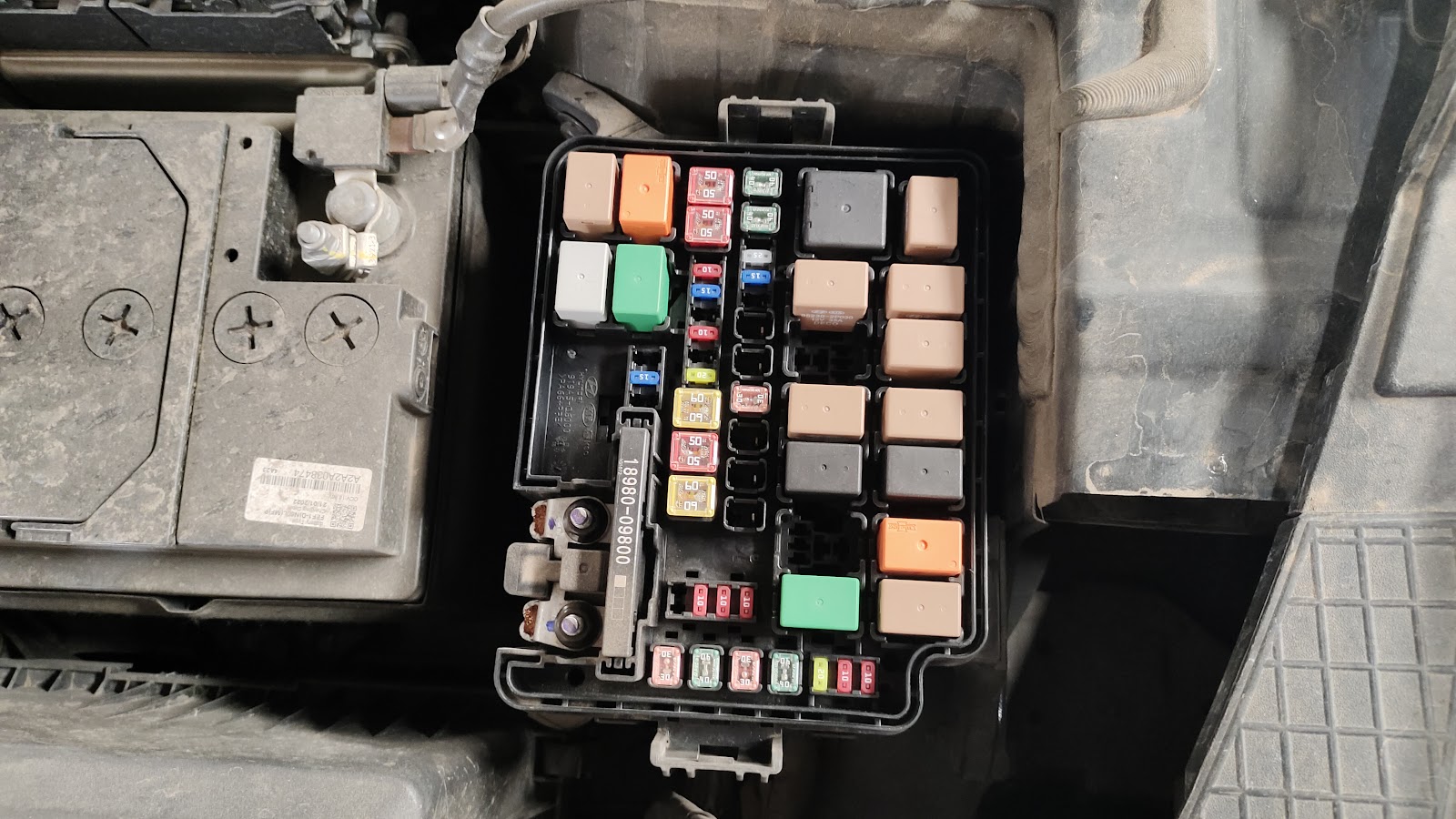

This fuse box is located Engine Compartment near battery. Remove the black cover as seen in the photo. All the fuse information is given on that cover. If you don't know the meaning of fuse then below all the information about fuse is given in Details.
1) Turn The Ignition Switch And All Other Switches Off.
2) Disconnect Negative Battery Cabel.
>> Then Check Fuse
3) If the multi Fuse is Blown , Consult Professional Workshop.
